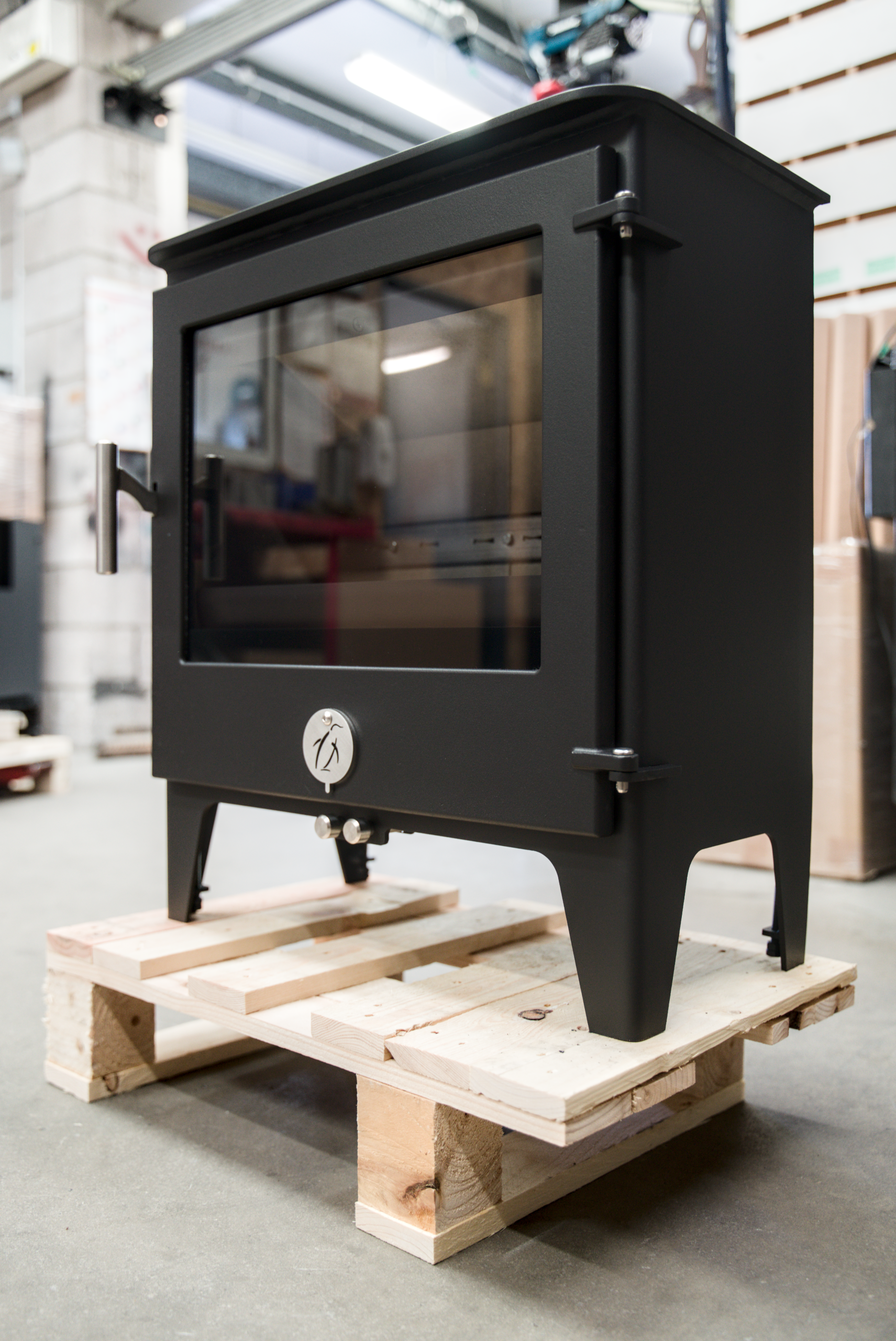

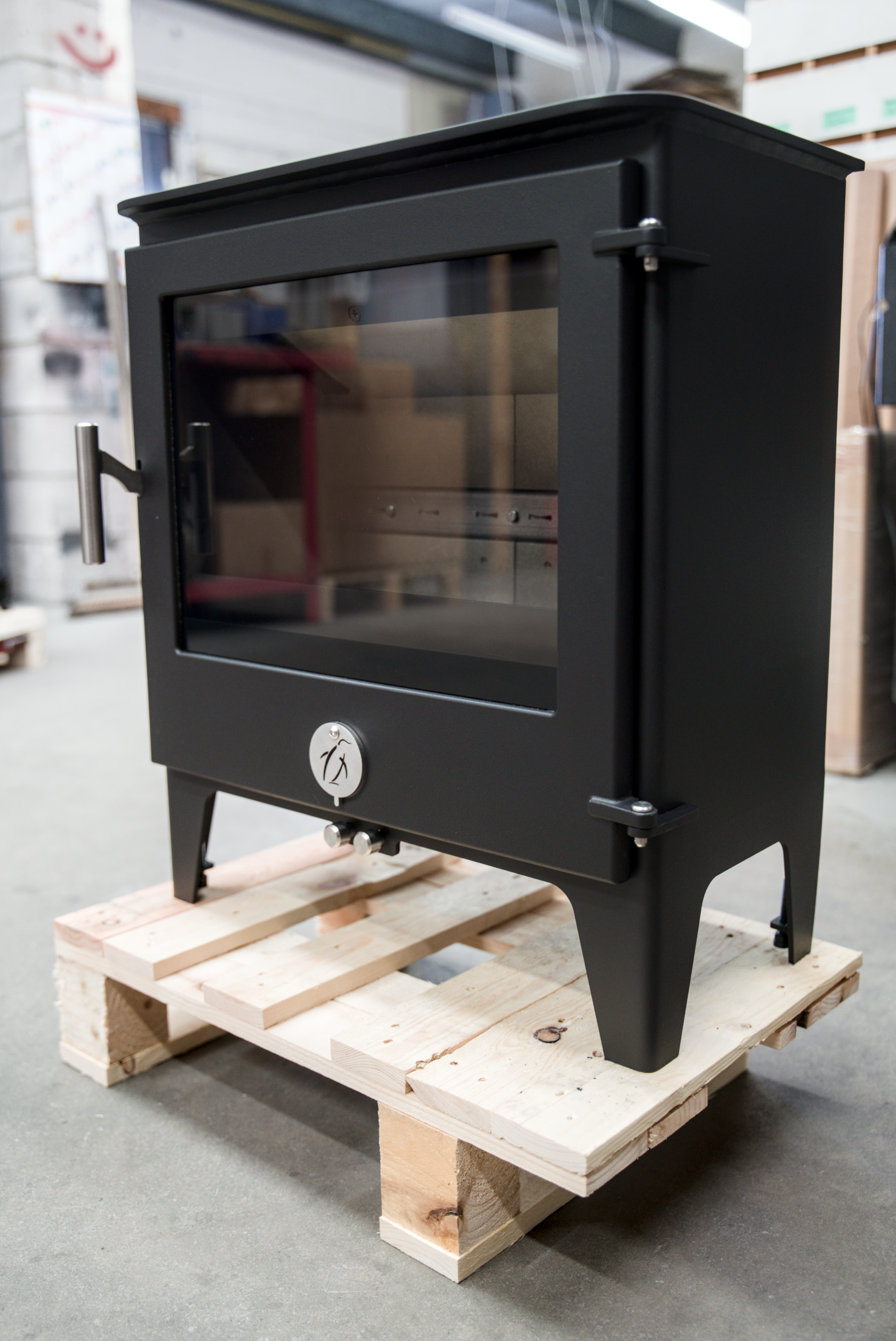

Woody (Multi Fuel)

Woody (Multi Fuel)

The slim eco stove with big world views and captivating dual nature.

Stove Story

If you have a big space in your life and you want to burn both wood and solid fuel, then this multi fuel version of Woody is the one for you. This stove allows you to reduce emissions and breath cleaner air but to have the choice of the fuel that you choose. Like its eco brother it is generously proportioned, yet slim, efficient, clean burning and quietly, modestly, magnificent.

The Prices

Woody Eco (Multi fuel) ยฃ1,735.00
Woody Eco plinthยฃ410.00
Extra height legs (+50mm) ยฃ92.00
Colours
Penguin Black (standard)FREE
Seal Grey/Storm Blue/Charred Red/Evergreenยฃ110.00
Polar Bear Bellyยฃ125.00
Factory fitted SMOKE CONTROL kit included
All Prices shown are RRP and include Vat

ORDERING AND DELIVERY INFORMATION

Whats More

To achieve lower emissions this penguin uses a combination of three features. Secondary heat retaining glazing, so the fire box stays hotter. Re-designed combustion air nozzles diffuse the incoming oxygen, allowing for a more complete combustion. Lastly the flow of air going toward the flue is interrupted, which increases the dwell time in the fire chamber, again contributing to more complete combustion.

Penguin Facts

The Woody Eco (Multi Fuel) is 83% efficient on wood and 87% efficient on anthracite.

This stove also has secondary heat retaining glazing, with air wash and a landscape view of the fire. It has the new stainless steel handle Chilli Penguin handle. There is an optional extra of extra height legs available.

Ecodesign stoves. In order to be an Ecodesign stove, a stove must be independently verified to meet stringent emission requirements. Particulates or PMs are the most commonly recognised of these measures. The maximum limit for these is 40 mg/m3. This stove achieves 20 mg/m3, burning wood, 16 mg/m3 burning smokeless fuel. All other measures are all listed in our technical details table below. Click here for further Ecodesign info.

Colour Options

  • Charred Red Charred Red
  • Storm Blue Storm Blue
  • Polar Bear Polar Bear
  • Seal Grey Seal Grey
  • Evergreen Evergreen
  • Penguin Black Penguin Black

See stove colours for more detail.

Tech Details

Fuel TypeWoodSmokeless Fitted
Nominal Output4.8kw5kw
Efficiency82.7%87.4%
Dimensions
Woody (Multi Fuel)
Width 565mmDepth 317mmHeight 584mm
Multi-fuelYes
Colours AvailableYes
Optional Direct air kitYes (factor fitted)
Optional plinth availableYes
Approved for use in smoke control zonesYes
Log length ร— diameterlength 430mmdiam 100mm
Flue collar diameter127mm (ID)
Flue size required125mm
Ecodesign measures
Particulates @ 13% O220mg/m316mg/mยณ
CO content @13% O20.09%0.04%
NOx mg/mยณ106mg/m3161mg/mยณ
CxHy mg /mยณ89 mg/m311 mg/mยณ
Top Exit
Rear Exit – adaptor required
standard
pre-order
Distance to combustibles +
side 400mmrear 350mmabove 550mm
Distance to combustibles with insulated flue fitted to stove top *
Side 400 mmrear 150mmabove 550 mm
Distance to non combustibles
side 100mmrear 50mmabove 150mm
Hearth Typeno base heat shield/plinthConstructional
Hearth Typewith base heat shield/plinth12mm
* these are the minimum distances, be aware that there are other considerations eg. access for sweeping, height of kettle etc
+ if single wall ie. non insulated flue is used then the distance to combustibles at the rear is equal to 3 x flue diameter

Stove Plans

Woody (Multi Fuel) installation plan
Woody (Multi Fuel) installation plan
Woody (Multi Fuel) installation plan
Woody (Multi Fuel) installation plan

Stove Manual PDF Download

Found your Penguin?

Let us know and we will put your local dealer in touch.
