The Chilli Billie Gentoo

Chilli Billie

The Chilli Billie Gentoo

Chilli Billie

Find me a home

Stove Story

This has always been the baby of the family, the Chilli Billie Gentoo wood burner fire stove (Generation 2-Gentooโ€ฆwe couldnโ€™t resist!) is still in no hurry to grow up. It likes chilling outโ€ฆ warming upโ€ฆ drying off and frying up. Found hanging out in small spaces like camping pods, yurts, beach huts, shepherds huts, sheds, studios and tiny homes. Also fond of little cottages and homes that need a smaller heat output.

It has undergone a redesign to meet the Eco Design criteria. We wanted to keep the essential nature of the Chilli Billie, with its little round porthole window but we are so excited that we have been able to introduce a few little extras at the same time, including an optional โ€œfood tubeโ€  for your weekend brunches, lazy lunches, evening cook-ups and everything in between.

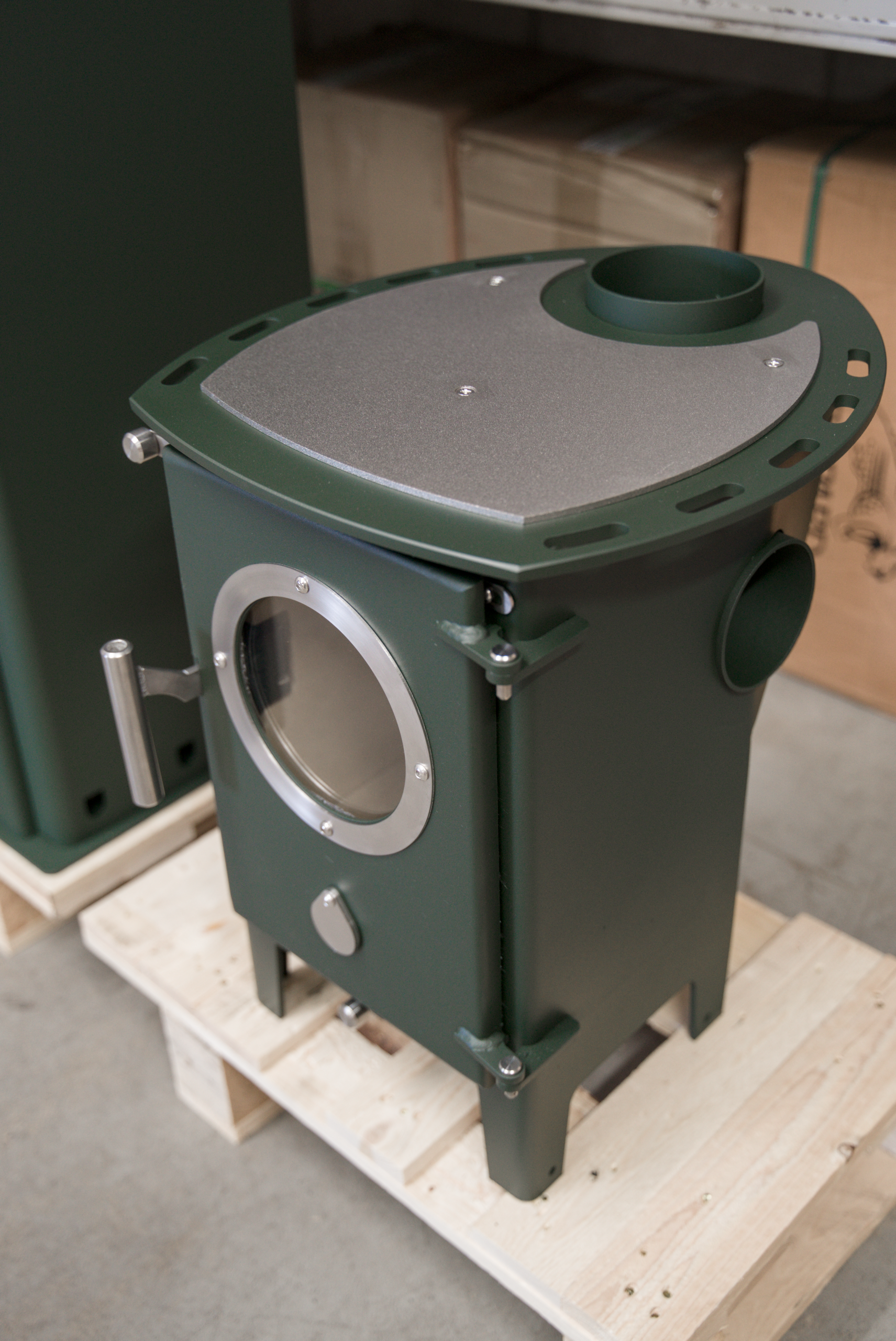

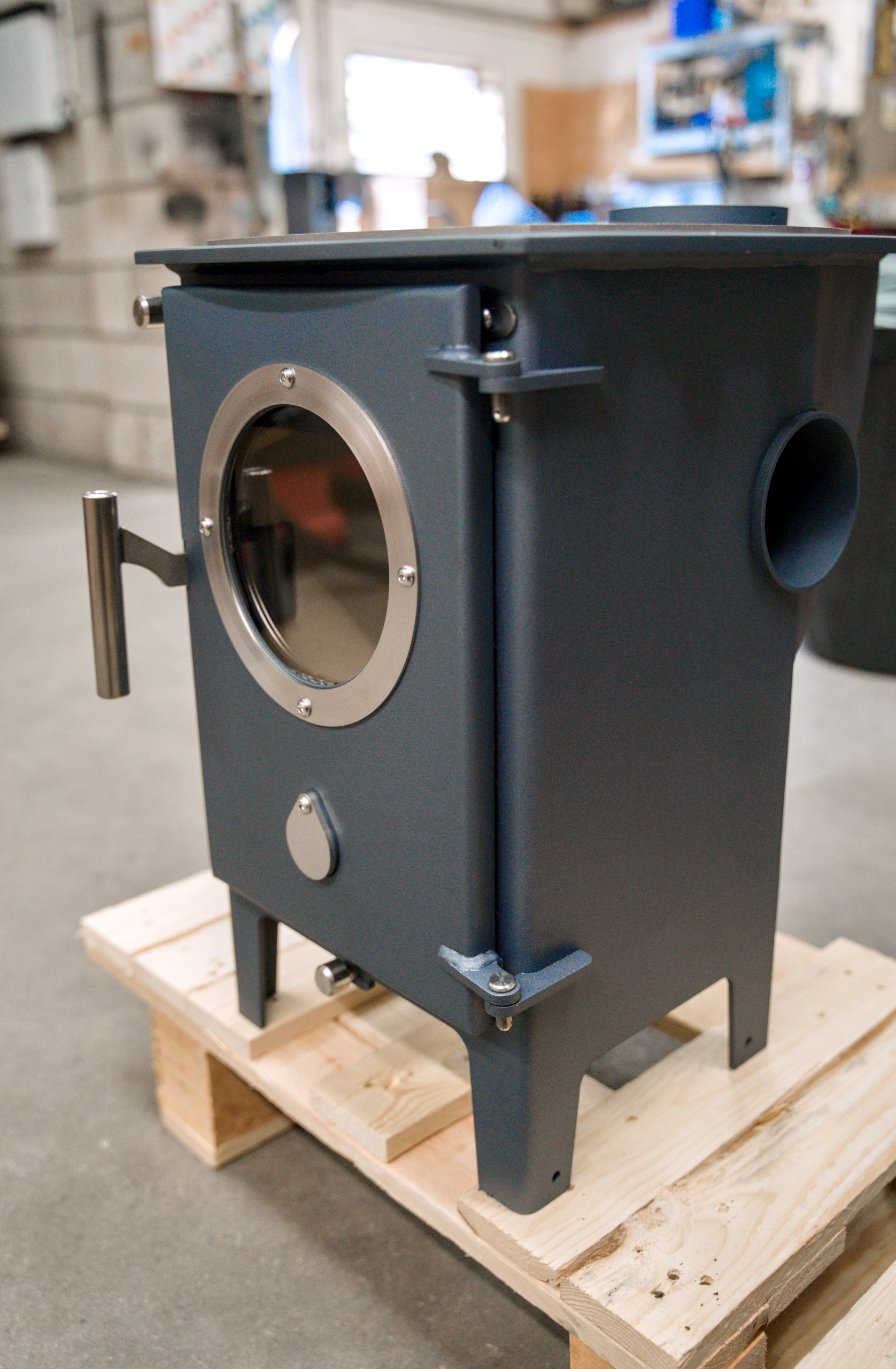

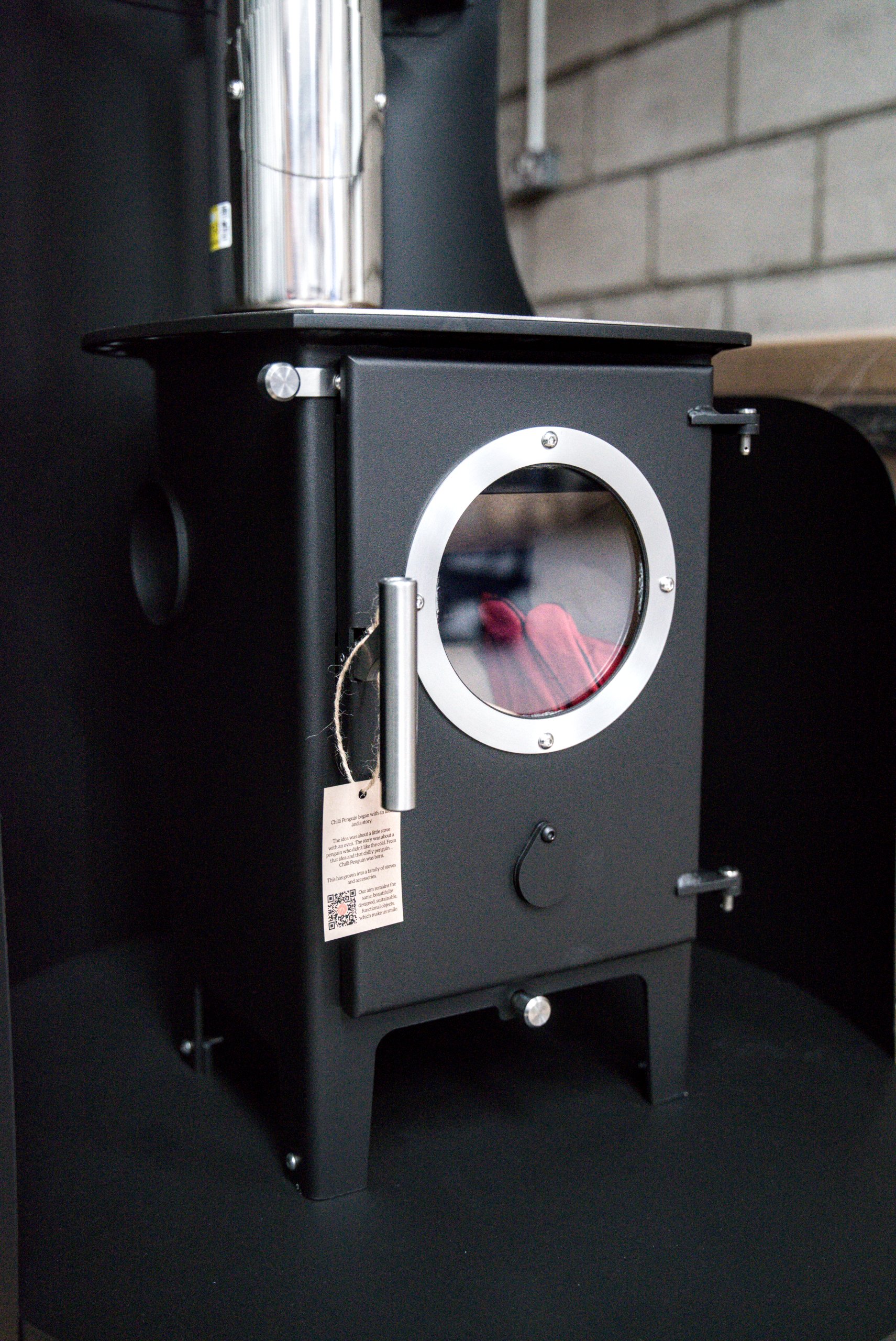

It is now front loading wood burner fire stove with the same stainless steel handle as the rest of the penguins. It has a stainless steel top plate as standard. The optional side shelves also have the stainless top. There are a selection of penguin heat shield enclosures. It is a bit wider than the original and the air controls are different.

The Prices

Chilli Billie Gentooยฃ1,360.00
Colours
Penguin Black (standard)FREE
Seal Grey/Storm Blue/Charred Red/Evergreenยฃ110.00
Add Ons
Starter Pipe with sweeping access
(Required to increase flue size to standard 125mm)
ยฃ110
Side Shelf
(can be fitted on either side)
ยฃ145
Floor Plate Anchor
(for use when not bolted to enclosure)
ยฃ42
Food Tubes
Single – Short Tubeยฃ75
Pair – Short Tubeยฃ140
Single – Long Tube
โ€ƒ(not compatible with enclosures)
ยฃ120
Enclosures
Classic Round Enclosureยฃ585.00
for Penguin Black
(extra charge for other finishes
)
Corner Enclosureยฃ575.00
for Penguin Black
(extra charge for other finishes)
All Prices shown are RRP and include VAT
___________________
____________________
Coming Soon
Two Sided EnclosureTBC
Hearth and WallTBC

ORDERING AND DELIVERY INFORMATION

Whats More

AIR CONTROLS: There are 3 air controls, the air boost disc, the air wash slider and the air control knob. This makes the Chilli Billie very controllable. Open all air controls when the fire is first lit, then let the boost disc swing down once the fire is established and adjust the other two controls to suit.

Wood burns better on a bed of ash, but when you do want to empty it, you just scoop it out from the base of the firebox. We have a tool called a “sgลตp” (pronounced scoop), available in our online shop, designed specifically for stoves without grates.

EFFICIENCY: The efficiency is 81.8%. It has passed all the testing requirements for Ecodesign and for suitability to burn in smoke control zones.

WARRANTY: Extended 5 year warranty

ADDITIONS:

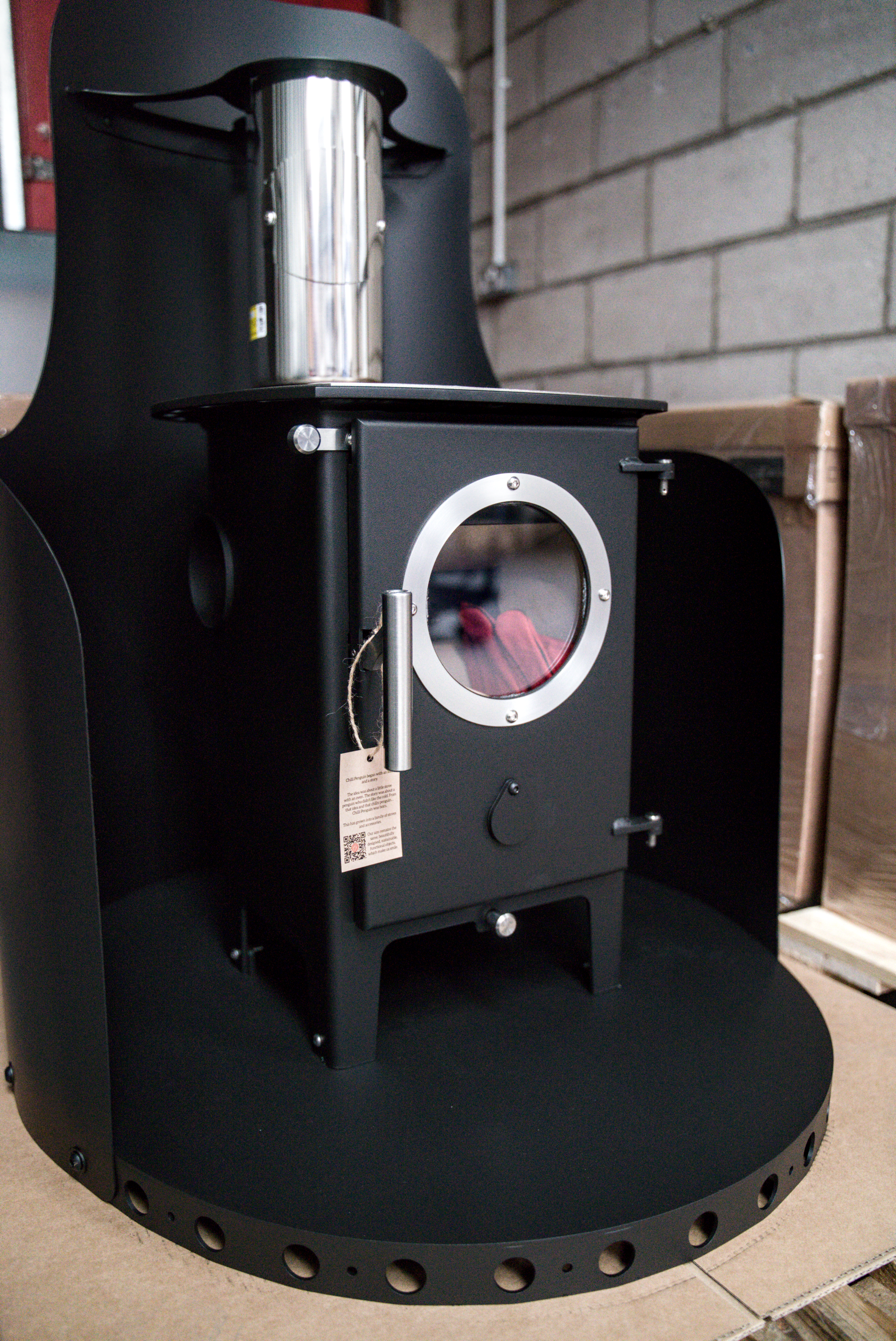

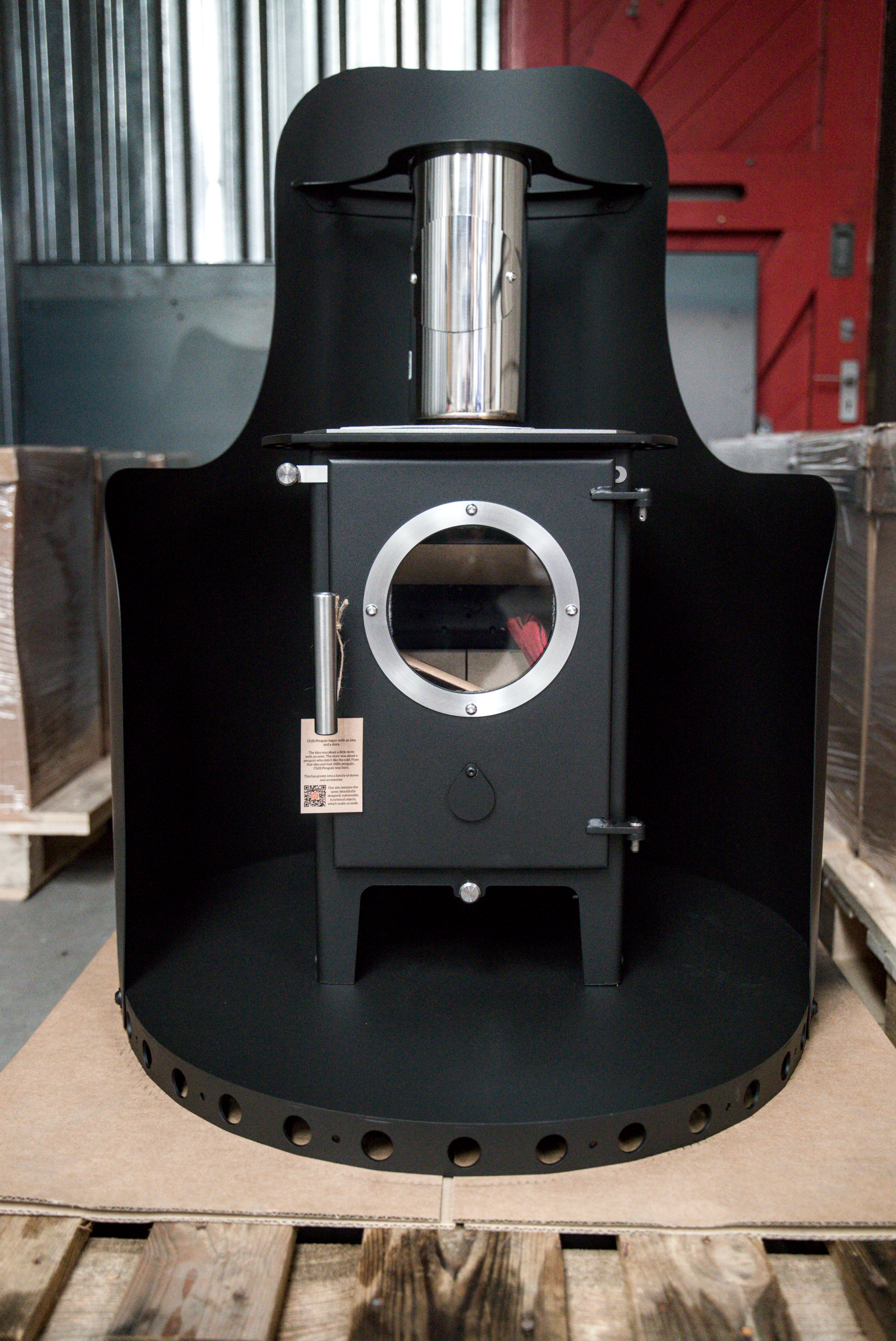

1. We make a selection of “Penguin Enclosures” for the Chilli Billie, these provide a separate and distinct space for the stove to sit in. They are double skinned to allow for the flow of cool air around the enclosure. They also act as a heat shield behind and to the sides and provide a hearth. There is a currently a round and square corner enclosure option and more options are in development.

2. There are optional side shelves, which fit either on the right or the left side (or both if you want two). These are designed to extend the top surface and give somewhere to place pans and kettle away from the direct heat.

3. There are optional Food Tubes, that slide in behind the fire box and can be used for cooking food. You can order a single tube to go in one side or two smaller ones to go in from each side.

Penguin Facts

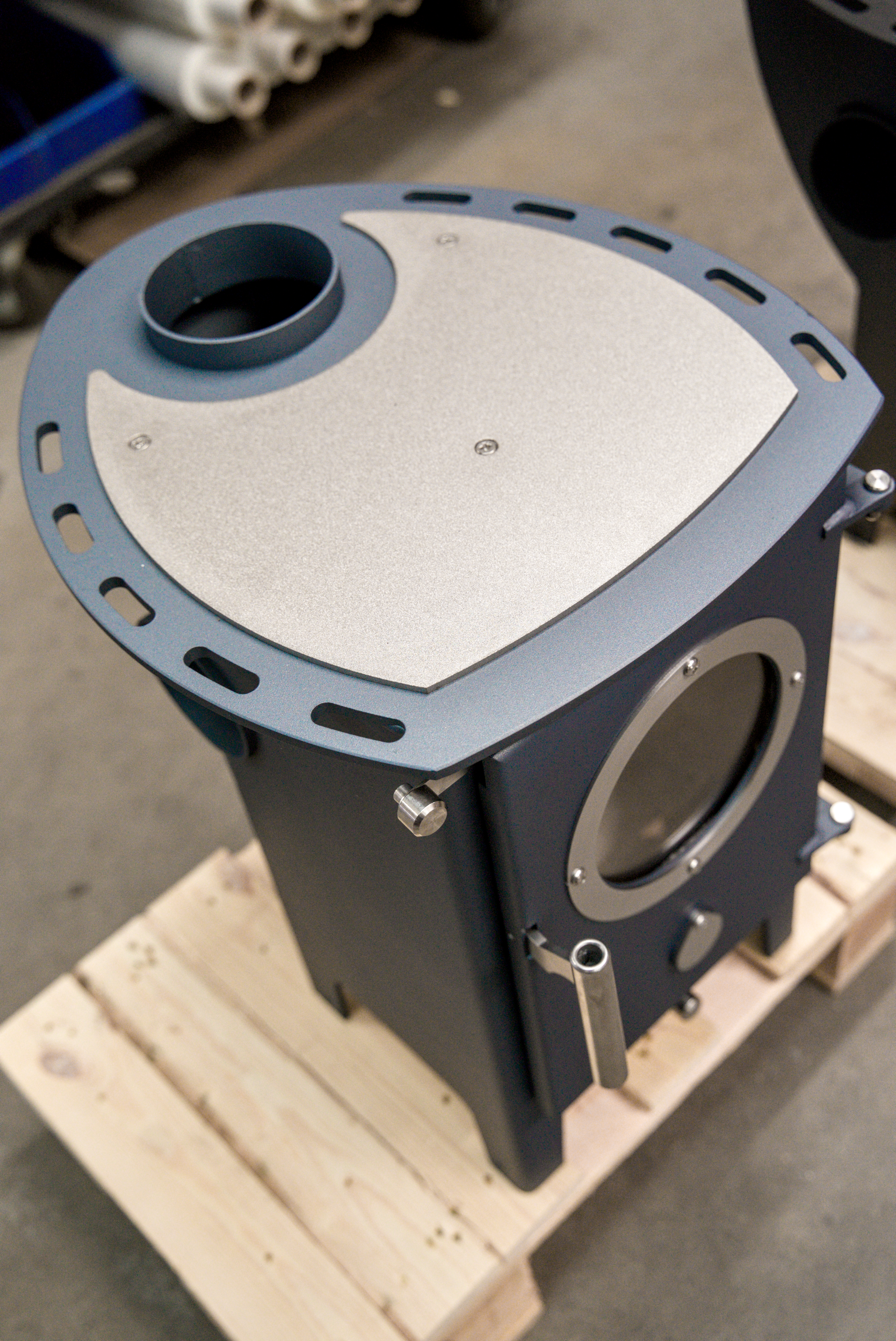

COOKING with a CHILLI BILLIE: The Chilli Billie has a stainless steel top plate (oven top surface) fixed on top of the painted stove surface. You can fit a small saucepan or coffee pot and a small flat bottomed kettle on the top plate. If you order an optional food tube, (available in 2 sizes) you can cook food inside this. It is inserted into the aperture behind the firebox. The temperature is controlled by both the amount of fuel you use and the air introduced through the air controls. The stoves on anyway and youโ€™ve paid for the fuel, โ€ฆwhy wouldnโ€™t you?

ECODESIGN STOVES: In order to be an Ecodesign stove, a stove must be independently verified to meet stringent emission requirements. Particulates or PMs are the most commonly recognised of these measures. The maximum limit for these is 40 mg/m3. This stove achieves 29 mg/mยณ. All other measures are all listed in our technical details table below. Click here for further Ecodesign info.

ACTUAL PENGUIN FACTS (Why not?): โ€œGentooโ€ penguins are the fastest underwater swimmers of all penguins, reaching speeds up to 36 km/h (22 mph).

โ€œGentooโ€ penguins are well adapted to extremely cold and harsh climates.

Colour Options

  • Charred Red Charred Red
  • Storm Blue Storm Blue
  • Seal Grey Seal Grey
  • Evergreen Evergreen
  • Penguin Black Penguin Black

See stove colours for more detail.

Tech Details

Nominal Output
Efficiency
4.3kW
81.8%
Dimensions
Gentoo Chilli Billie
Width 405mmDepth 473mmHeight 508mm
Food Tube Dimensions
Diameter 90mmShort 140mmLong 280mm
Wood OnlyYes
Colours AvailableYes
Optional Direct Air KitNo
Approved for use in smoke control zonesAwaiting final approval
Log length ร— diameterlength 180mmdiam 100mm
Flue collar diameter107mm (ID)
(105-125mm adaptor required, often sold as 4″ – 5โ€adaptor)
Ecodesign measures
Particulates @ 13% O229mg/mยณ
CO content @13% O20.10%
NOx mg/mยณ122mg/mยณ
CxHy mg /mยณ102mg/mยณ
Top Exit
Rear Exit
as standard
not available
Distance to combustibles *+
side 400mmrear 400mmabove 400mm
Distance to non combustibles
side 100mmrear 500mmabove 150mm
Hearth Type12mm
* these are the minimum distances, be aware that there are other considerations eg. access for sweeping, height of kettle etc
+ if single wall ie. non insulated flue is used then the distance to combustibles at the rear is equal to 3 x flue diameter

Stove Plans

Chilli Billie Gentoo installation plan
Chilli Billie Gentoo installation plan
Chilli Billie Gentoo installation plan
Chilli Billie Gentoo installation plan
Chilli Billie Gentoo installation plan
Chilli Billie Gentoo installation plan
Chilli Billie Gentoo installation plan
Chilli Billie Gentoo installation plan
Chilli Billie Gentoo installation plan

Stove Manual PDF Download
